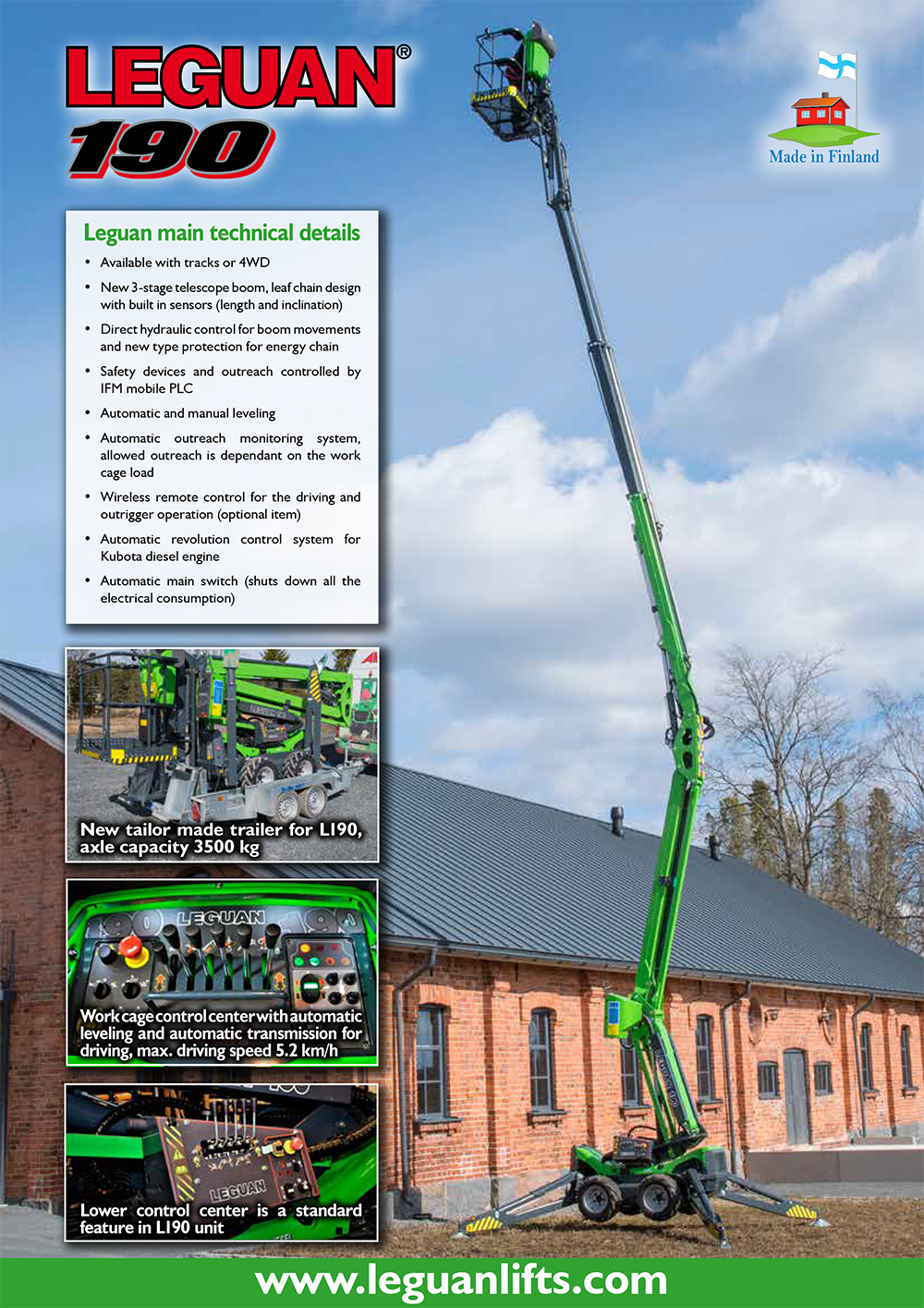

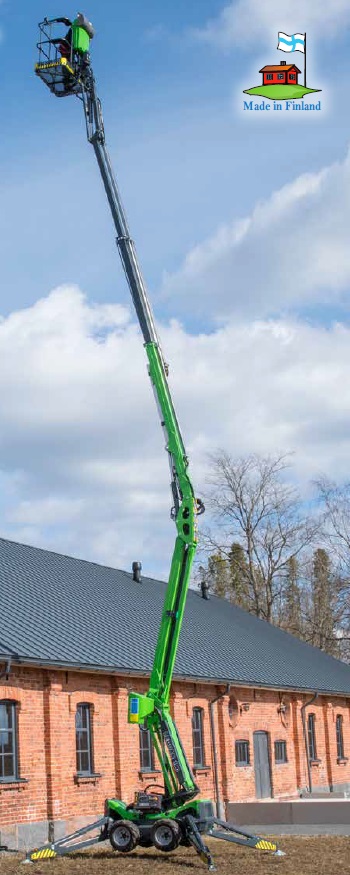

Leguan 190

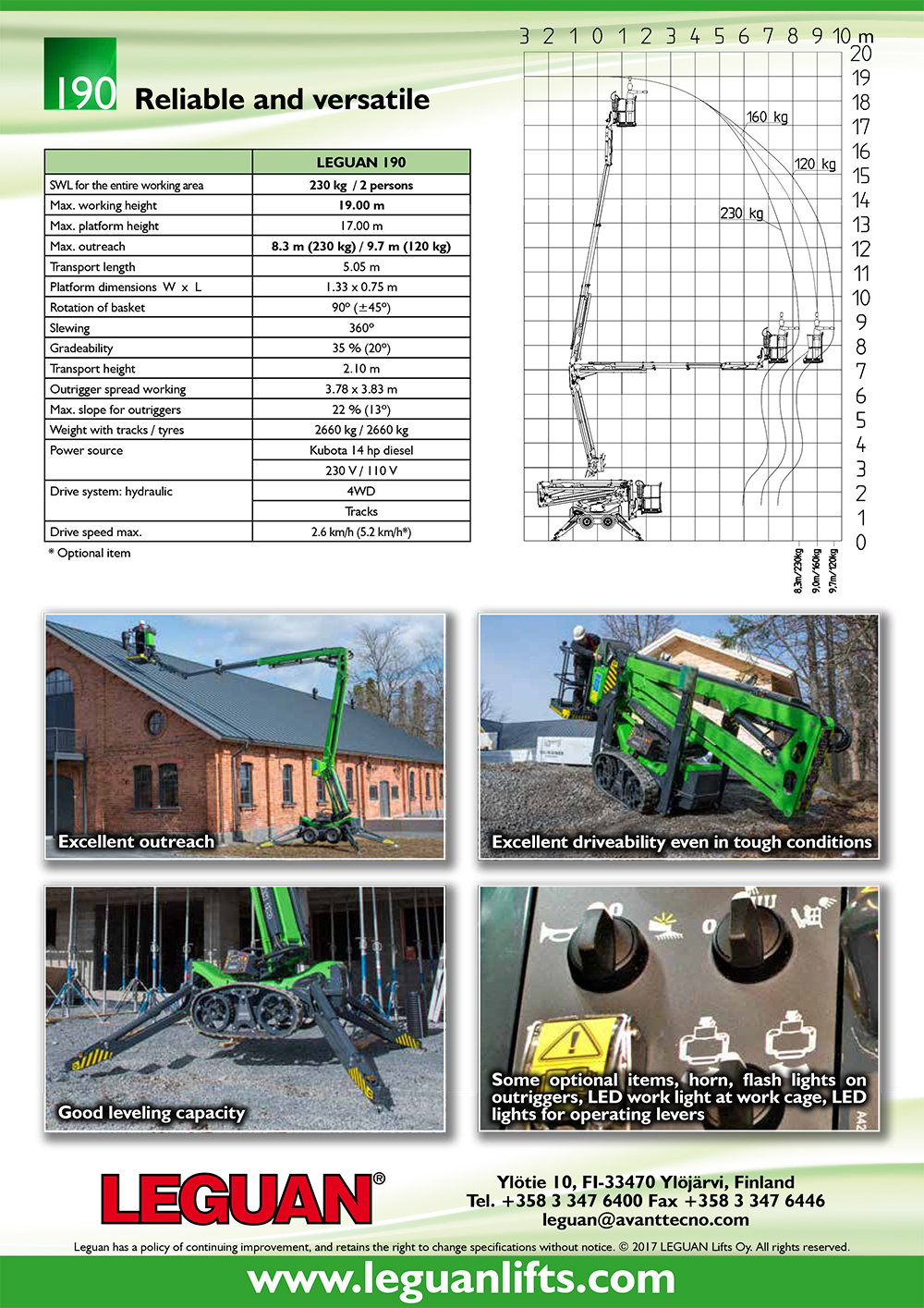

| Model | Leguan 190 |
|---|---|
| SWL for the entire working area | 230 kg /2 persons |
| Max. platform height | 17.00 m |
| Max. Working height | 19.00 m |
| Man. outreach | 8.3 m (230 kg) / 9.7m (120 kg) |
| Transport length | 5.05 m |
| Platform dimensions W x L | 1.33 x 0.75 m |
| Rotation of basket | 90º (+/- 45º) |
| Slewing | 360º |
| Gradeability | 35 % (20º) |
| Transport height | 2.10 m |
| Outrigger spread workng | 3.78 x 3.83 m |
| Max. slope for outriggers | 22% (13º) |
| Weight with racks / tyres | 2660 kg / 2660 kg |
| Power source | Kubota 14 hp diesel(230V / 110 V) |
| Drive system: hydraulic | 4WD (Tracks) |
| Drive speed max | 2.6 km/h (5.2km/h *) |
